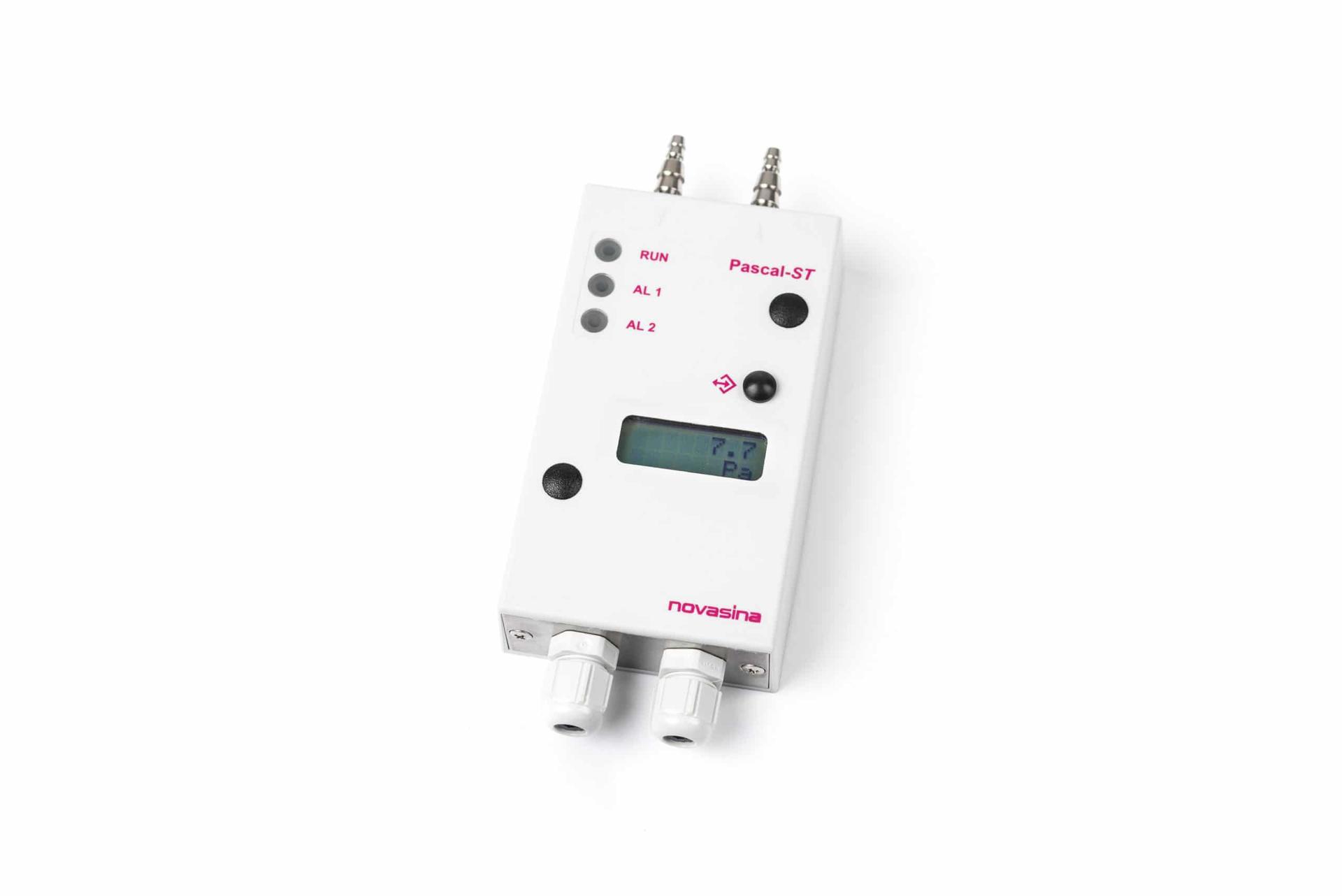

Differential pressure sensor based on static pressure measurement (diaphragm). Ideal for applications with high demands in the pharmaceutical and semiconductor industries, also for mini environments and FFU.
2 programmable relay contacts with adjustable thresholds and Red/green LED indicator
High Accuracy differential pressure sensor
Drift-free and long-term stability due to automatic zero point calibration
2 Relay output
Compact and robust
3 measuring ranges available 0 to 50 / -25 to +25 / -100 to +100 Pascal
LCD Display optional
Configuration and calibration with USB configuration cable for Windows PC.
Differential pressure sensor based on static pressure measurement (diaphragm). Ideal for applications with high demands in the pharmaceutical and semiconductor industries, also for mini environments and FFU.
2 programmable relay contacts with adjustable thresholds and Red/green LED indicator
Measuring ranges: -25…+25 Pa / -100…+100 Pa (bidirectional) & 0 to 50Pa
Measuring accuracy: 25 Pa series +/- 0.3% (total measuring range)
at 20°C 100 Pa series +/- 0.1% (total measuring range)
Hysteresis: +/- 0.15 Pa (over entire measuring range)
Type offset drift: +/- 0.15 Pa (with automatic zero point adjustment)
Power supply: 10.5 … 35 VDC
Power Consumption: Max. 2.5 Watt
Relay Output 2 x 48V, 2 A
Freely configurable.
Display LCD Display
Weight: 320 gr.
